MB623P

Four-side Moulder

The product is mainly used for processing the four sides planing and molding of various wood products with a width within 230mm. For example: solid wood doors and Windows, photo frames, solid wood flo

QMB-623P is a six-axis, four-side woodworking moulder, using a fully enclosed safety cover, feeding configuration of 9 up and 3 down a total of 12 groups of active feed roller and universal joint transmission, the speed is up to 6-36m /min (frequency conversion speed regulation). It has the advantages of reasonable structure, stable performance, smooth feeding and good processing quality. In particular, the double tool structure is used to achieve the combination of rough planing and fine planing, and the planing quality is more smooth and perfect.

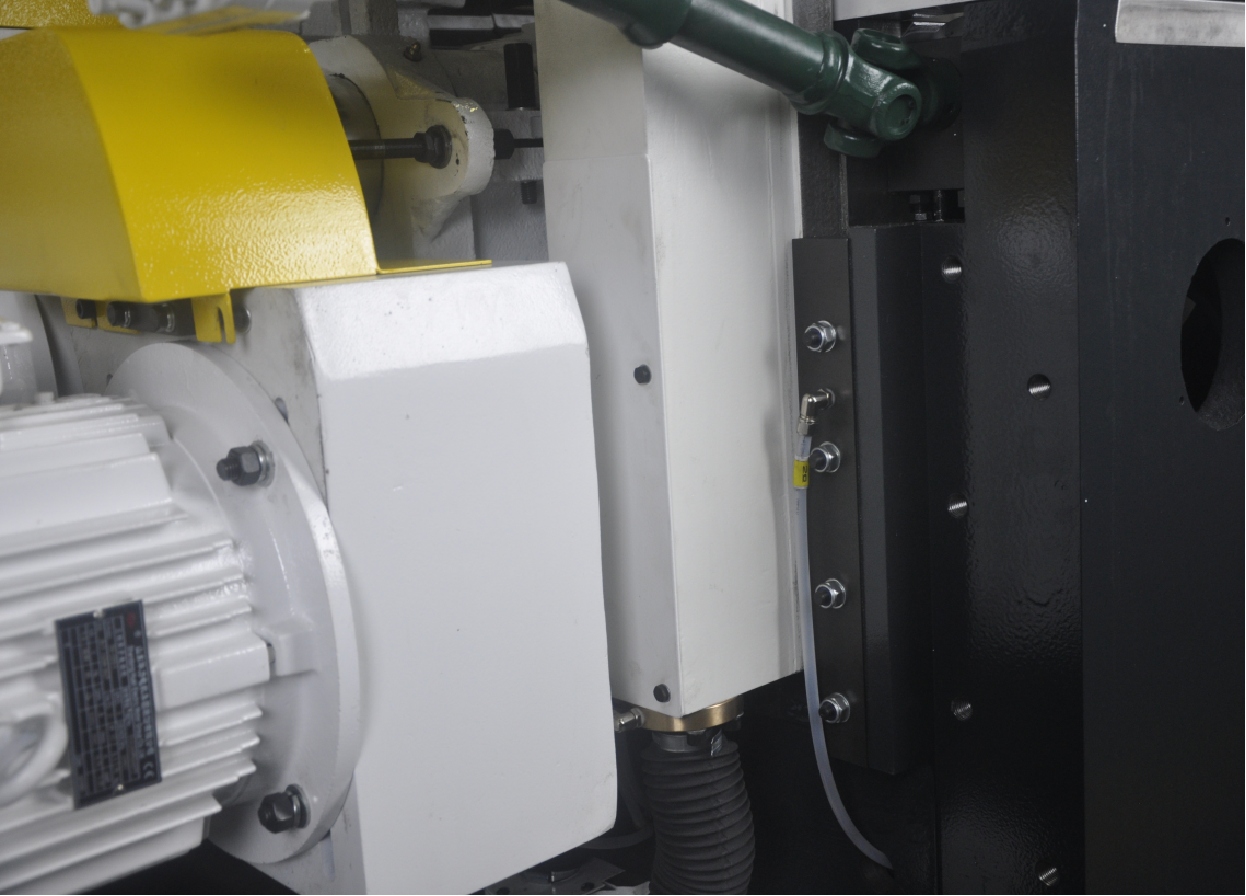

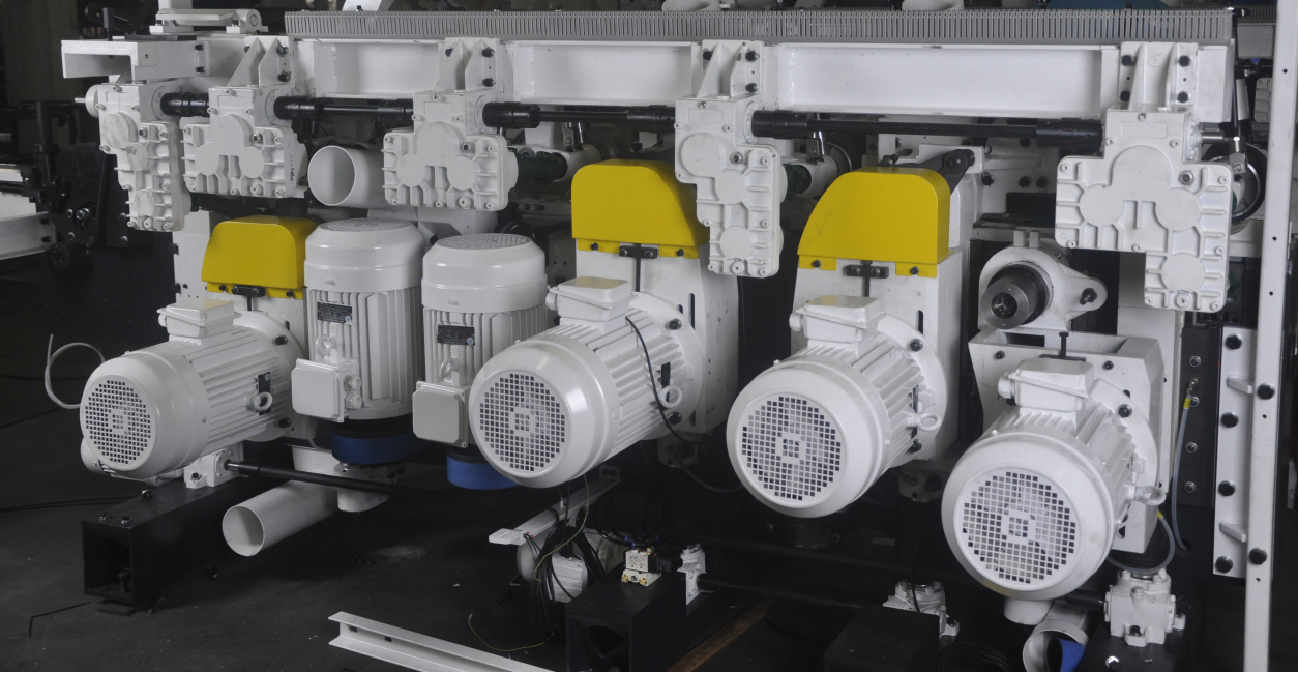

  • The spindle motor is equipped with powerful power, individual drive, and good planing quality.
    The spindle motor is equipped with powerful power, individual drive, and good planing quality.

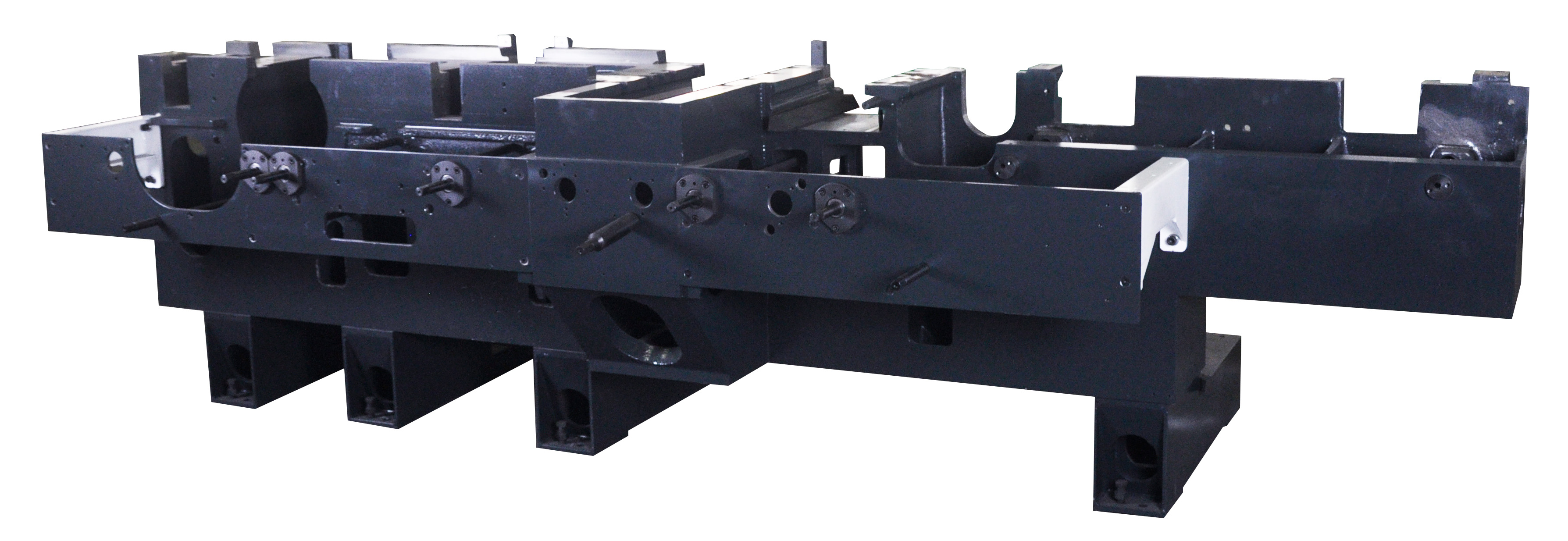

  • The bed is made of high strength cast iron, stable structure and good rigidity
    The bed is made of high strength cast iron, stable structure and good rigidity
  • All horizontal lifting spindle seat, vertical shaft lifting spindle seat are made of skateboard, spindle seat, motor seat integral casting precision machining, to ensure long-term use without deformation.
    All horizontal lifting spindle seat, vertical shaft lifting spindle seat are made of skateboard, spindle seat, motor seat integral casting precision machining, to ensure long-term use without deformation.
  • Front plate of top spindle adopts the backward-type chip breaker , and rear plate of top spindle adopts the mechanical digital display.
    Front plate of top spindle adopts the backward-type chip breaker , and rear plate of top spindle adopts the mechanical digital display.
  • Equipped with automatic lubricating oil pump, automatically lubricate the table.

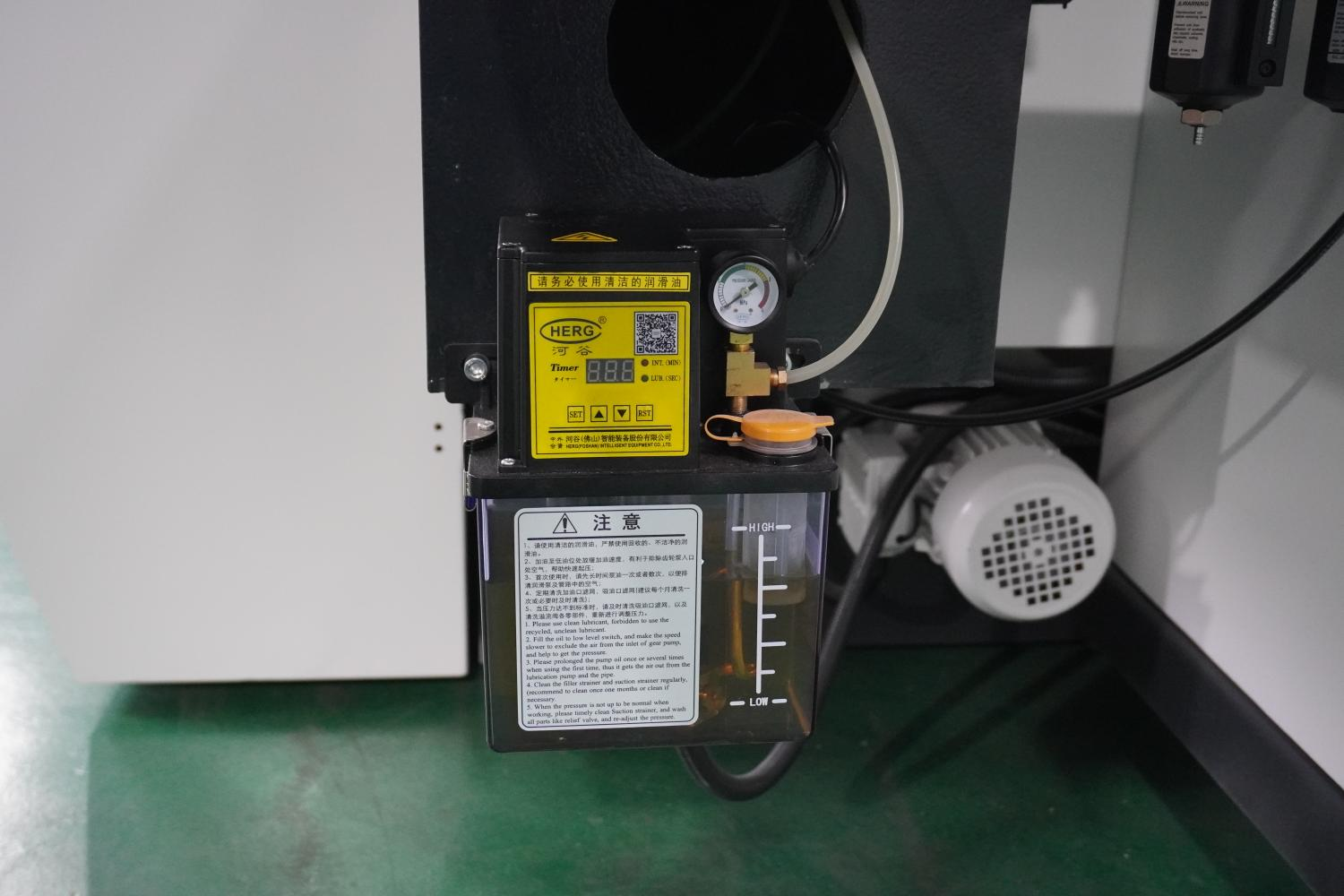

    Equipped with automatic lubricating oil pump, automatically lubricate the table.

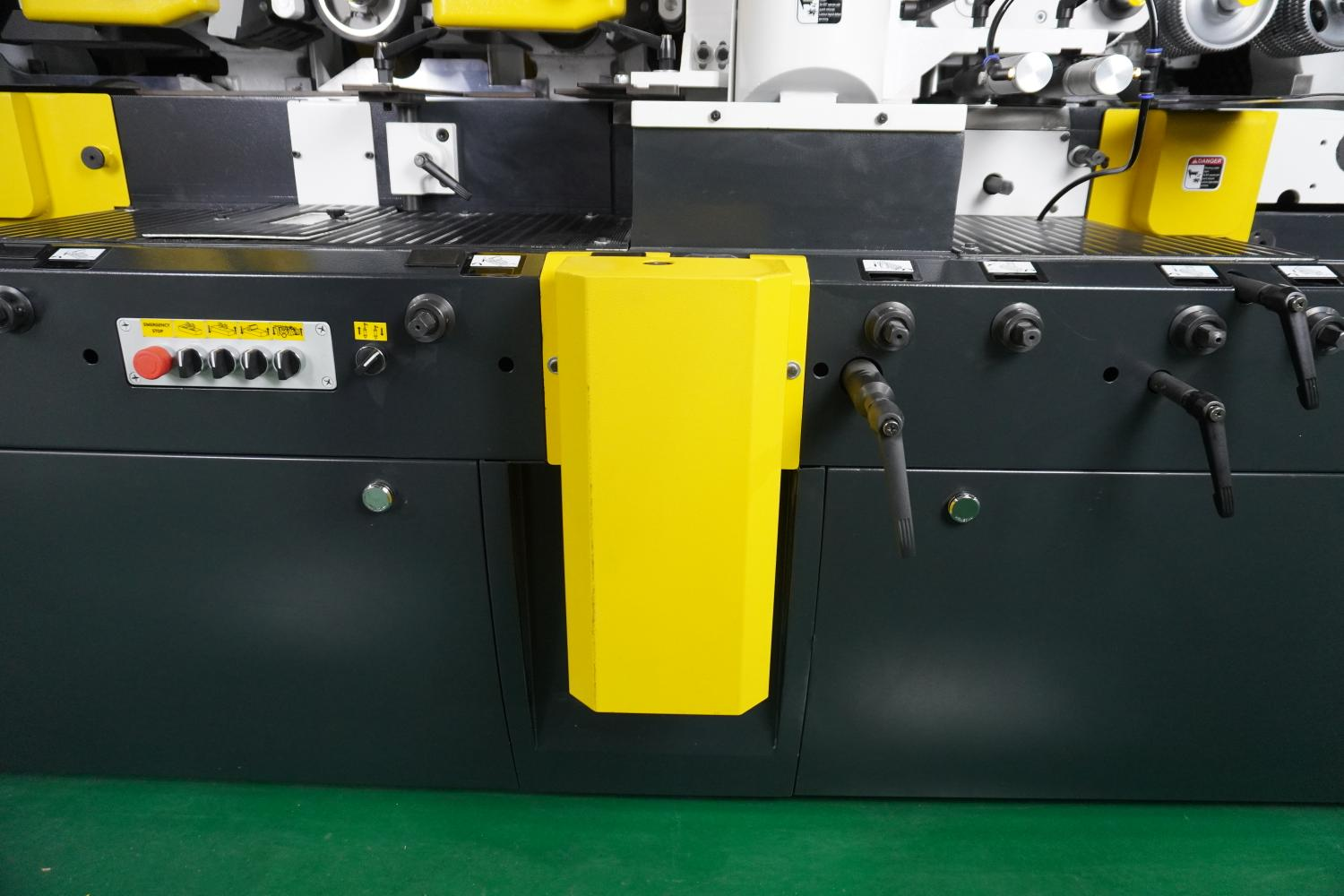

  • All spindles lifting, advance and retreat adjustment can be adjusted in front of the equipment, convenient and fast
    All spindles lifting, advance and retreat adjustment can be adjusted in front of the equipment, convenient and fast

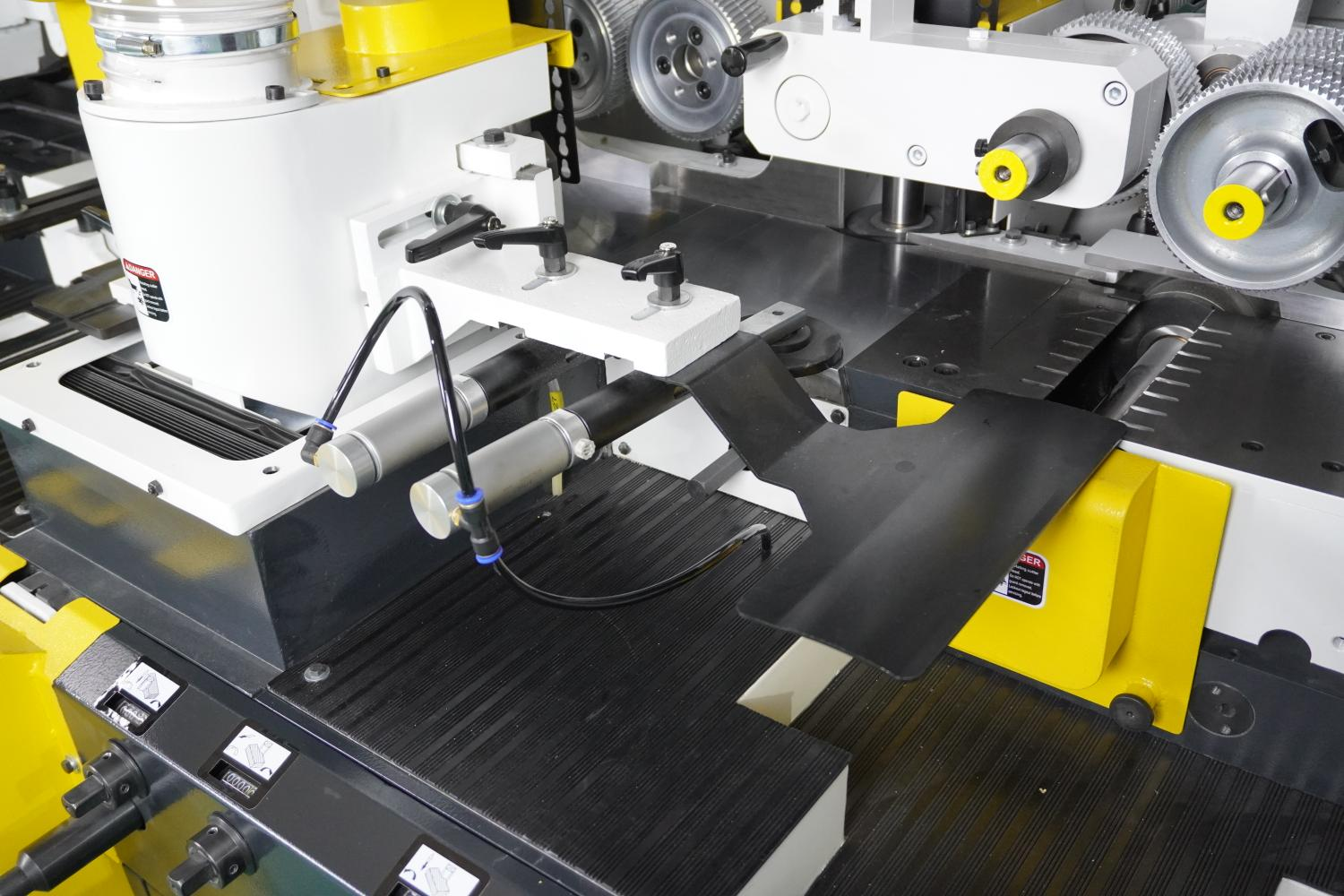

  • The side pressure of the left vertical shaft adopts the cylinder pressing material to effectively prevent the material sticking.
    The side pressure of the left vertical shaft adopts the cylinder pressing material to effectively prevent the material sticking.
  • Touch screen control, upper and left spindle electric adjustment, and with position feedback display.

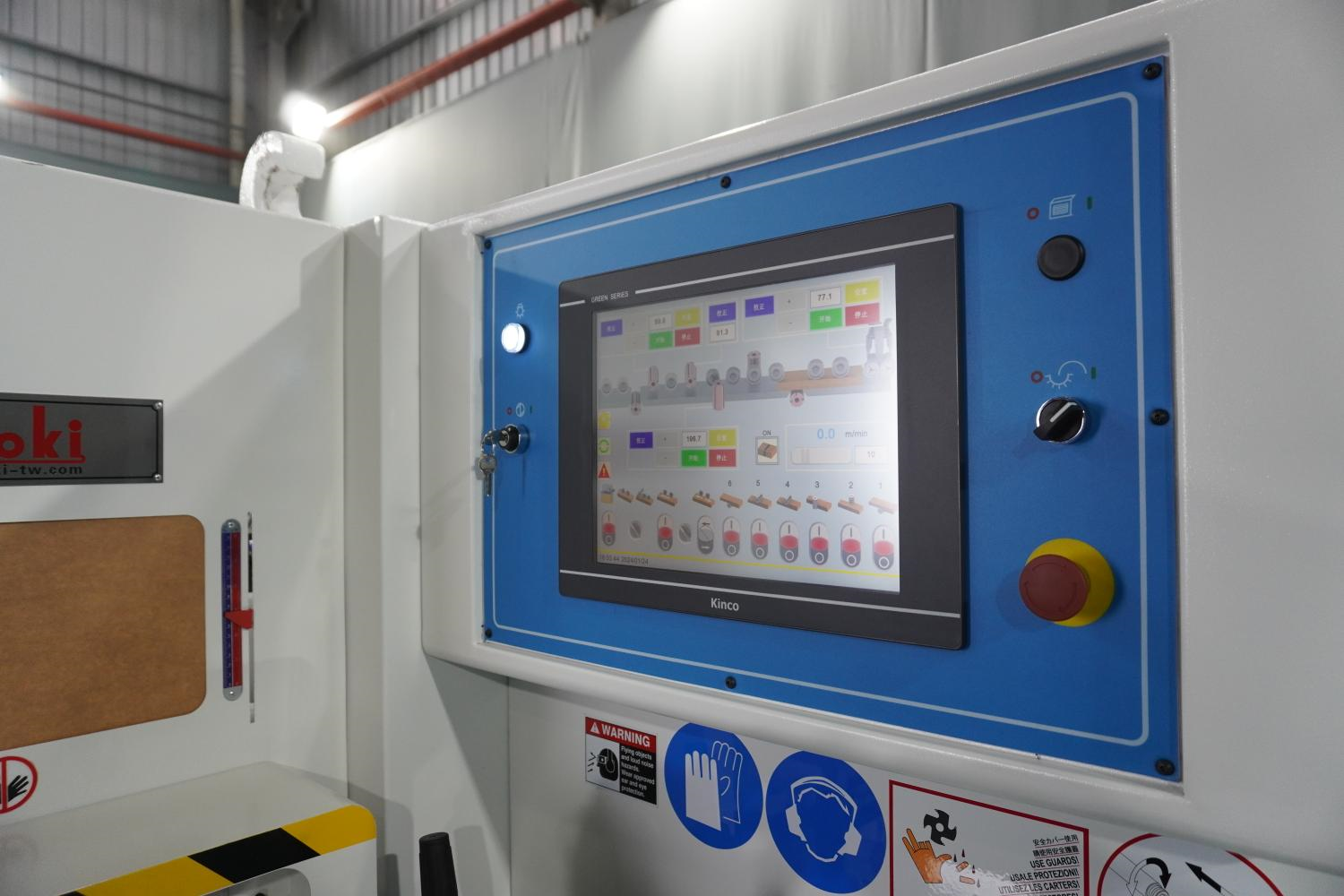

    Touch screen control, upper and left spindle electric adjustment, and with position feedback display.

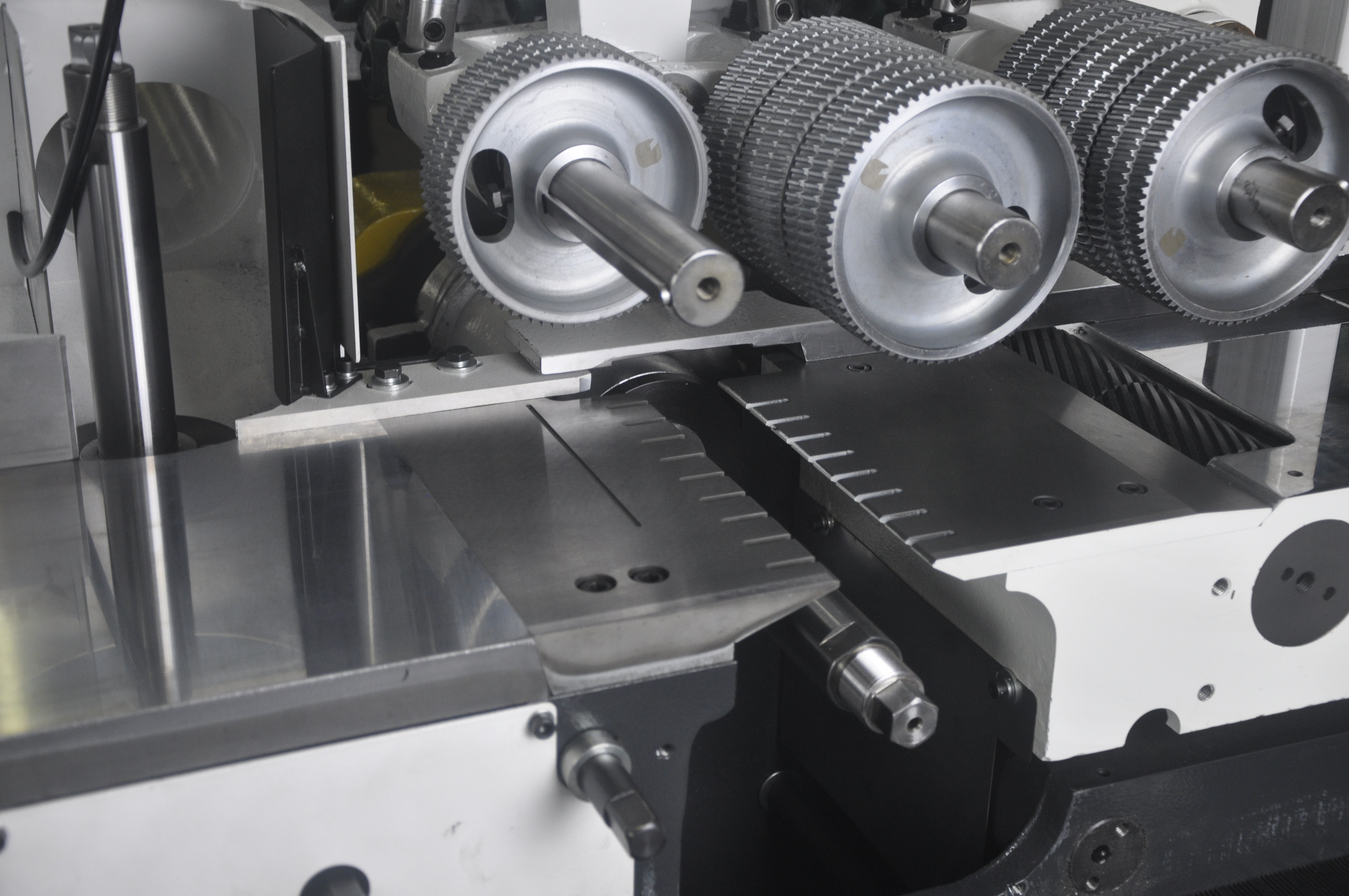

  • The work table is equipped with 3 active feed rolls to ensure smooth feeding.
    The work table is equipped with 3 active feed rolls to ensure smooth feeding.
  • MB623P spindles layout

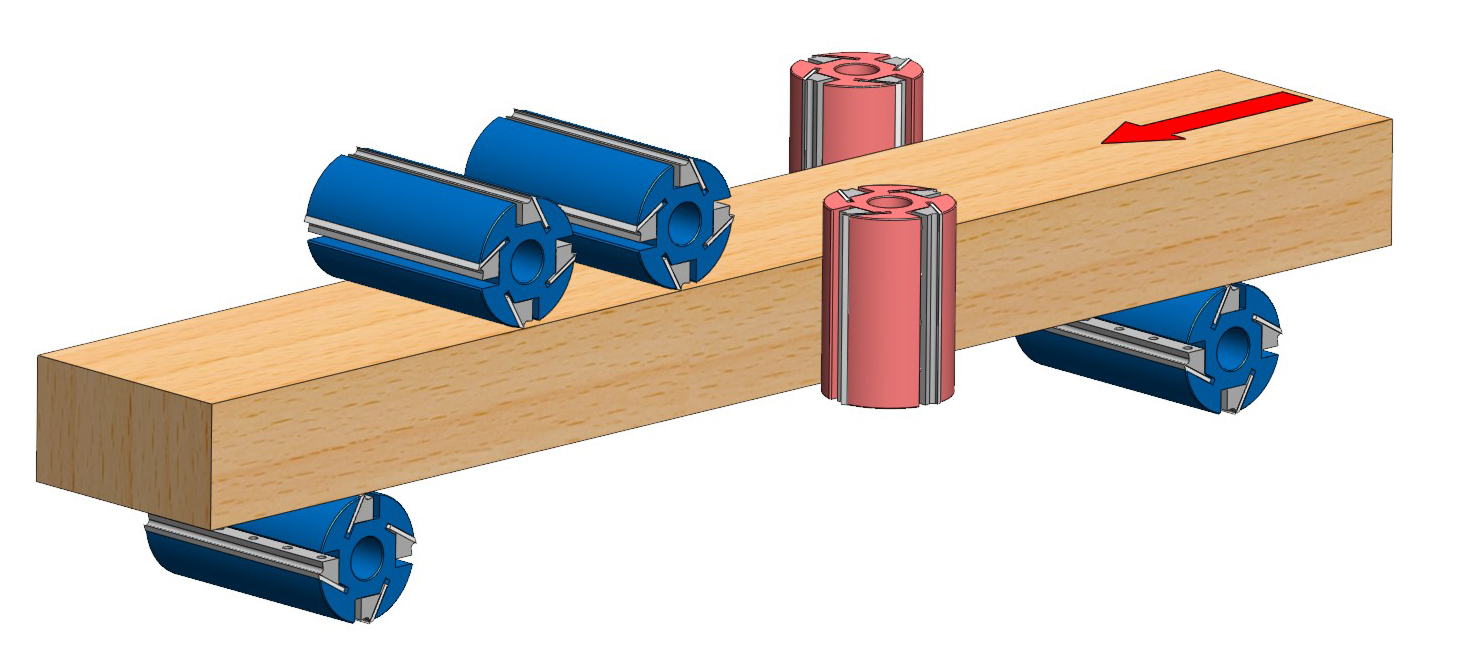

    MB623P spindles layout
  • The electrical components are all international well-known brands, stable performance, long service life

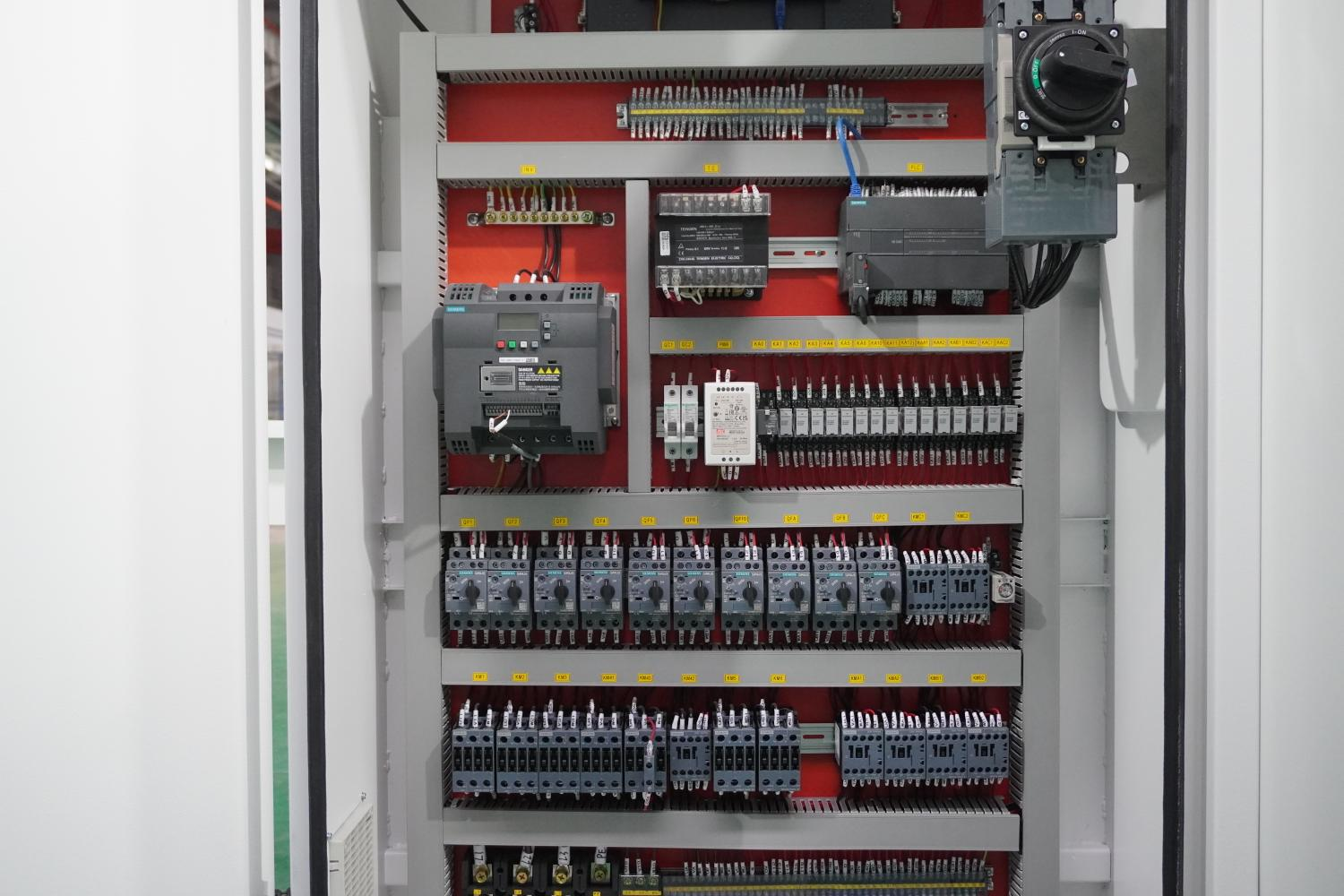

    The electrical components are all international well-known brands, stable performance, long service life

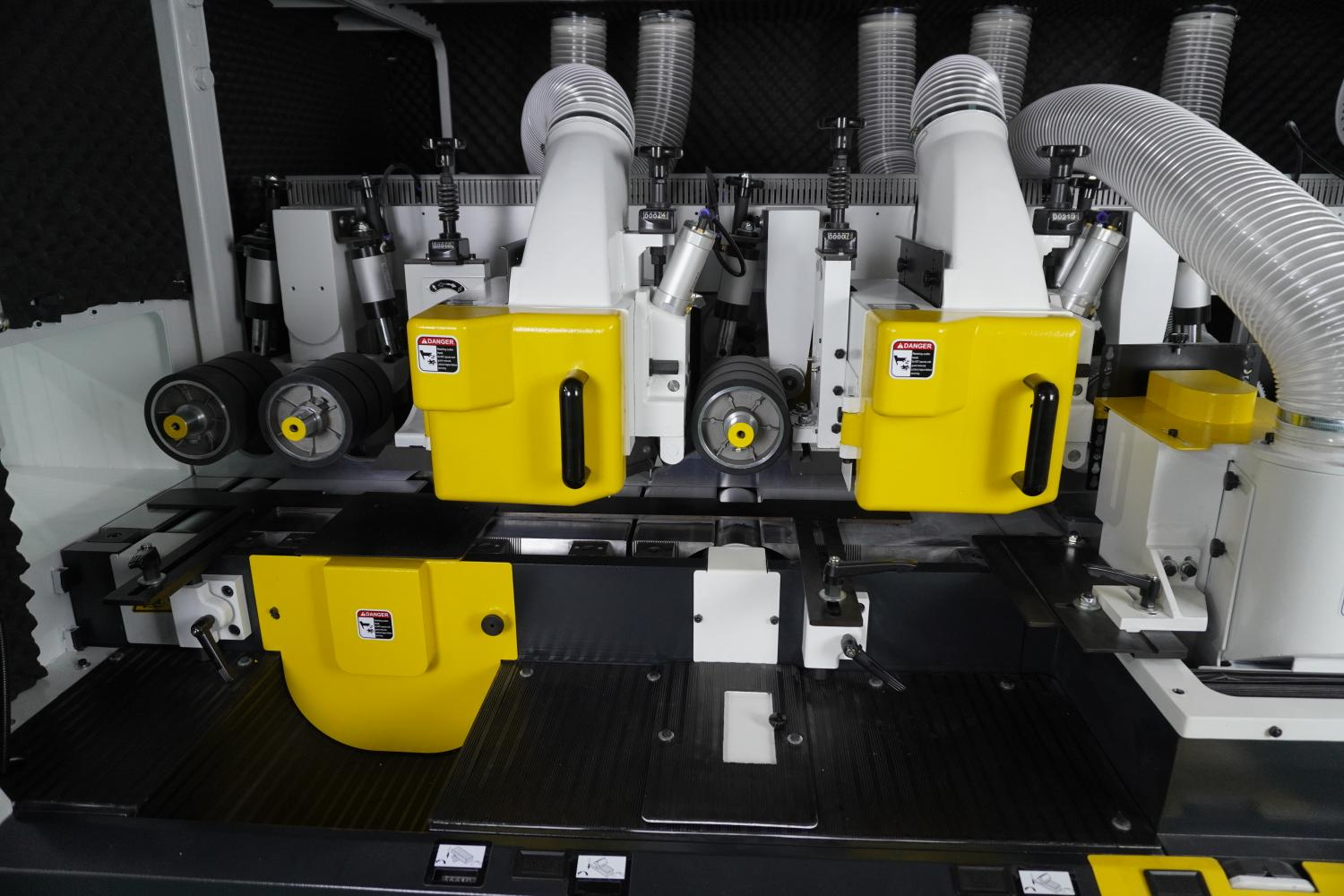

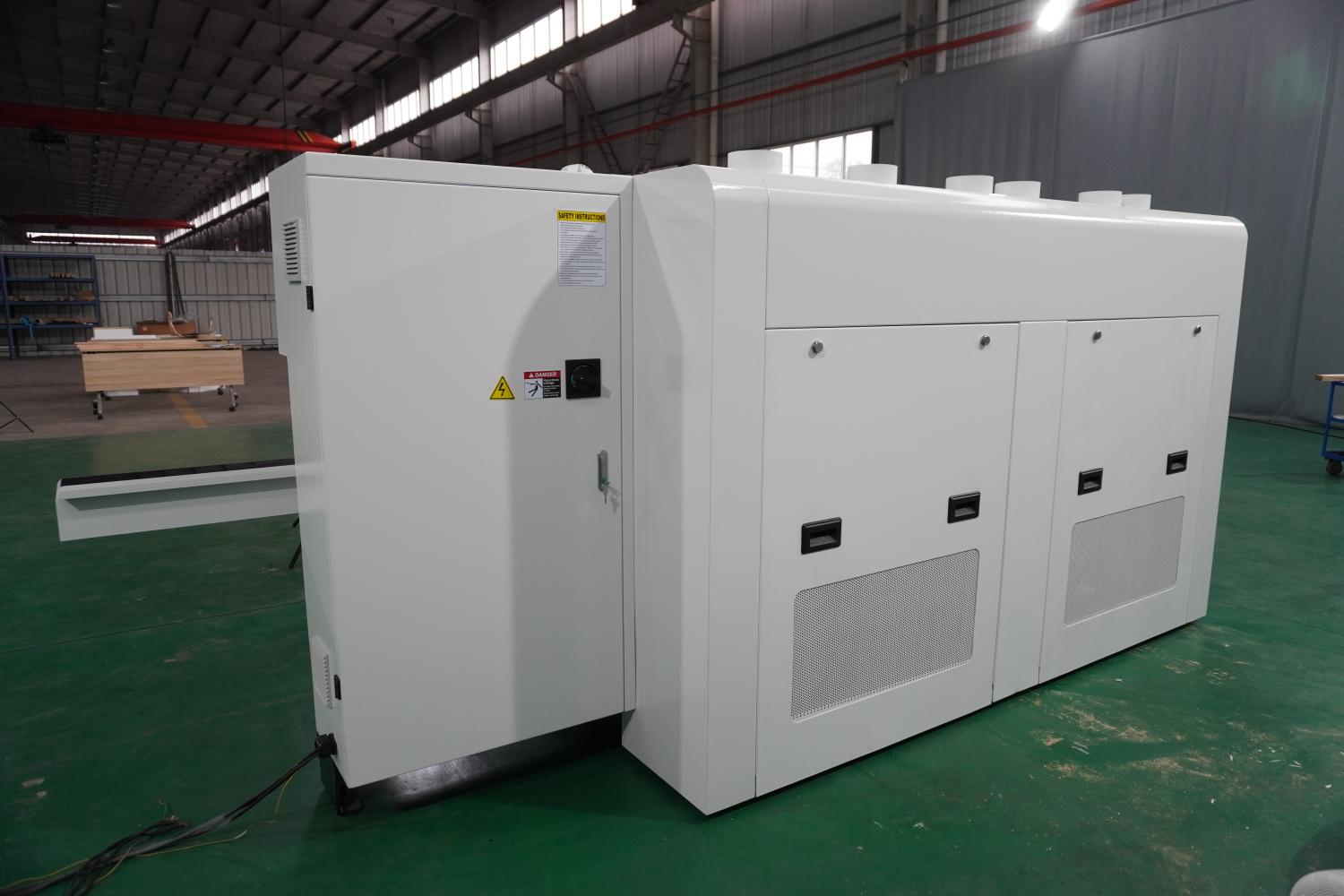

  • The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection.
    The use of fully enclosed safety cover can effectively avoid the splashes of wood chips and isolate noise, and play a role in safety protection.
  • The compression beam adopts dovetail lifting structure to lock more firmly and lift more smoothly.
    The compression beam adopts dovetail lifting structure to lock more firmly and lift more smoothly.
  • Feed transmission adopts reducer and universal coupling drive, feed strong and powerful.

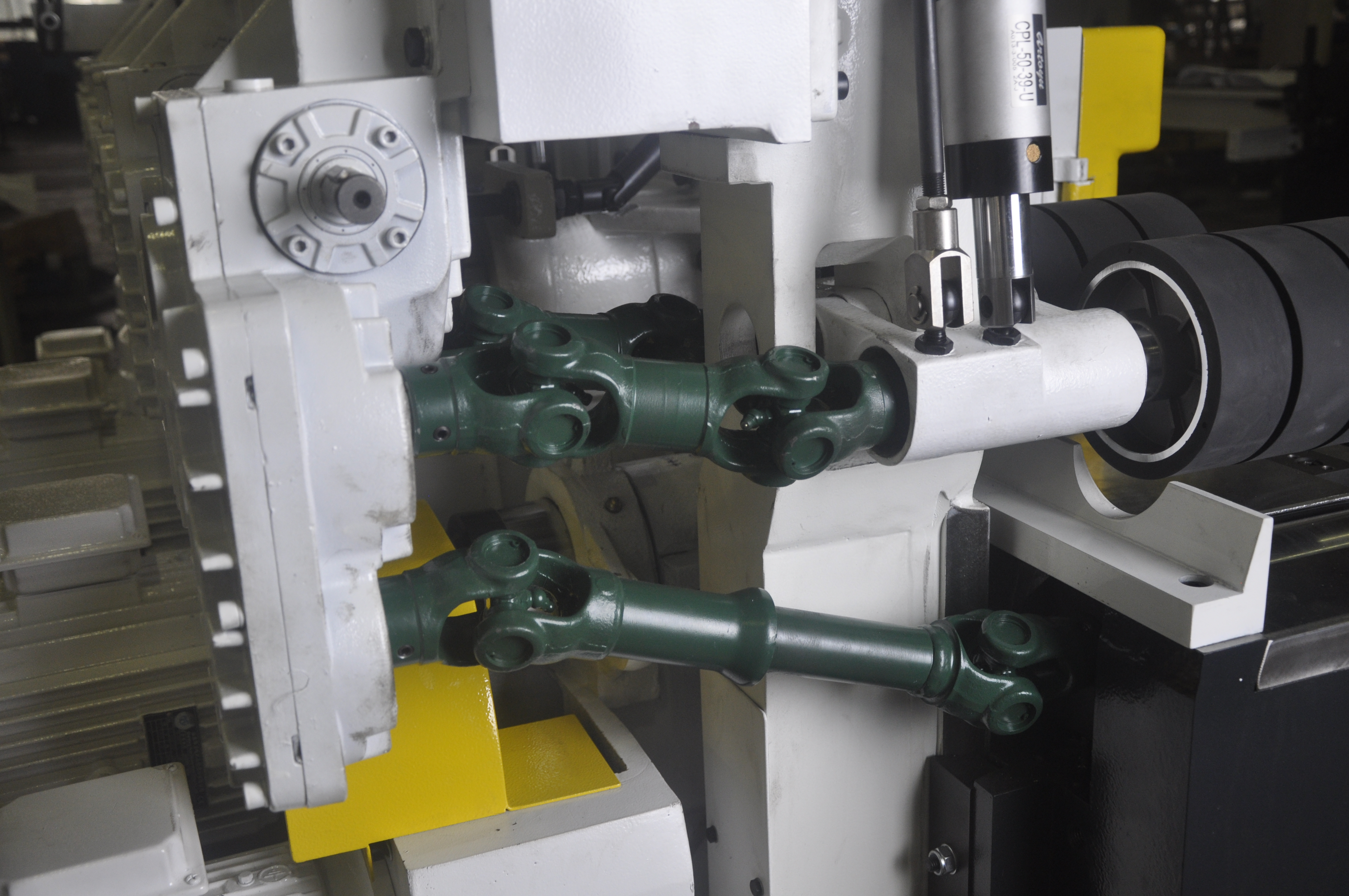

    Feed transmission adopts reducer and universal coupling drive, feed strong and powerful.
  • The first bottom spindle table is treated with special coating for long service life. The rest are chrome plated.
    The first bottom spindle table is treated with special coating for long service life. The rest are chrome plated.
  • Adopt new feeding tooth shape, high feeding efficiency.
    Adopt new feeding tooth shape, high feeding efficiency.
QMB-623P 六轴四面木工刨床参数
规格型号 单位 QMB-623P
加工宽度(刀具旋转外径140mm时) mm 20-230
加工高度(刀具旋转外径140mm时) mm 8-150
最短加工长度(不连续/连续） mm  840/280
活动工作台/活动限位条最大移动量 mm 7  /  7
刀轴直径 mm Φ40
送料辊直径 mm φ140
送料速度 m/min 6-36
刀轴转速 r/min 6000
装刀直径：               第一下水平刀轴 mm Φ125~Φ160
                                          左、右立刀 mm Φ108~Φ180
                                前 上刀 / 后上刀 mm Φ108~Φ200
                                               后下刀 mm Φ125-230
电机总功率 kW 54
                              前上刀轴电机功率 kW 11
                              其余刀轴电机功率 kW 各7.5
                              送料电机 kW 5.5
                              横梁升降电机 KW 0.75
吸尘管直径 mm φ150
外形尺寸（长x宽x高） cm 450x200x185
机床重量 Kg 4550
